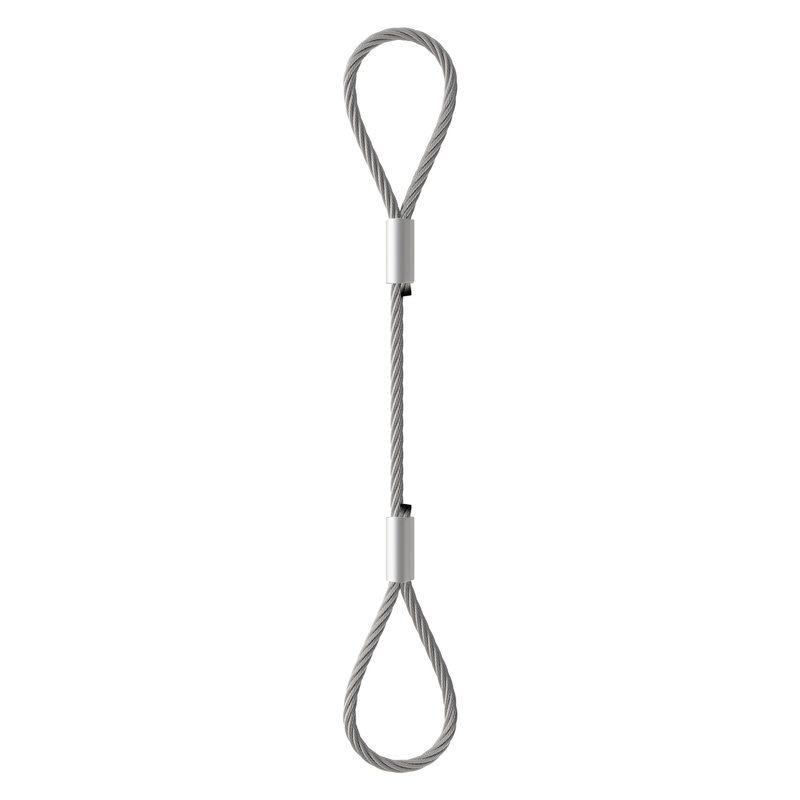

Standard Soft Eye Wire Rope Sling with Aluminum Ferrule
Fabricated from high-performance wire rope, this sling features standard soft eyes at both ends, terminated with pressed aluminum ferrules.
- Mechanical Swaged Soft Eye Wire Rope Sling
- Diameter Range: 2.5mm to 10mm
- Construction: 6×7, 6×19, 6×37, etc. (available upon request)
- Swaged Ferrule: Aluminum Alloy EN AW‑5051A / 6063
- Length Tolerance: Per EN 13414‑1
Fabricated from high-performance wire rope, this sling features soft eyes at both ends, terminated with high-quality pressed aluminum ferrules (EN AW-5051A / 6063). Every sling is swaged in strict accordance with EN 13411-3, and the mechanical splice achieves 100% of the wire rope's minimum breaking force.
It's a solid, dependable choice for light-duty industrial lifting, rigging, and general cargo handling. The soft eye design offers the flexibility to work easily with your hardware, allowing quick and effortless attachment to crane hooks or shackles without the bulk or rigidity of a thimble, while still holding up reliably across a wide range of industrial and logistics applications.
Specifications
6×37-IWRC/FC 1670MPa Standard Soft Eye Sling Chart

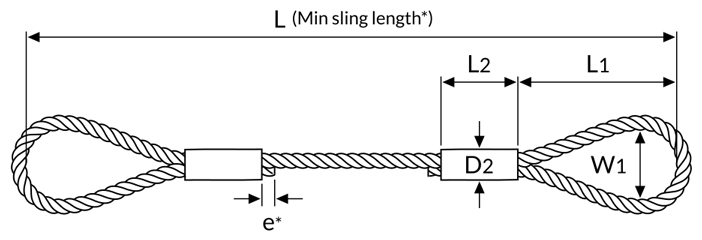

| Item No. | Rope Dia. | Min. Sling Length* |
Soft Eye | Swaged Ferrule | Rated Capacities (tons) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (mm) | Size (mm) | Material* | Vertical | Choker | Basket | ||||||
| (mm) | L (mm) | W1 × L1 | D2 × L1 | IWRC | FC | IWRC | FC | IWRC | FC | ||
| KS637(S/F)25D-BEEA | 2.5 | 130 | 20 × 40 | 5 × 12 | AW-6063 | 0.3 | 0.3 | 0.45 | 0.45 | 0.75 | 0.75 |
| KS637(S/F)03-BEEA | 3 | 150 | 23 × 46 | 6 × 14 | AW-6063 | 0.4 | 0.55 | 0.85 | |||
| KS637(S/F)04-BEEA | 4 | 200 | 30 × 60 | 8 × 18 | AW-6063 | 0.5 | 0.65 | 0.95 | |||
| KS637(S/F)45D-BEEA | 4.5 | 220 | 34 × 68 | 9 × 20 | AW-6063 | ||||||
| KS637(S/F)05-BEEA | 5 | 250 | 38 × 76 | 10 × 23 | AW-6063 | 0.6 | 0.75 | 1 | |||
| KS637(S/F)06-BEEA | 6 | 300 | 45 × 90 | 12 × 27 | AW-6063 | ||||||
| KS637(S/F)65D-BEEA | 6.5 | 330 | 50 × 100 | 13 × 29 | AW-6063 | ||||||
| KS637(S/F)07-BEEA | 7 | 350 | 53 × 106 | 14 × 32 | AW-6063 | ||||||
| KS637(S/F)08-BEEA | 8 | 400 | 60 × 120 | 16 × 36 | AW-6063 | ||||||
| KS637(S/F)09-BEEA | 9 | 445 | 68 × 136 | 18 × 40 | AW-5051A | ||||||
| KS637(S/F)10-BEEA | 10 | 490 | 75 × 150 | 20 × 45 | AW-5051A | ||||||
- Note: Larger diameter slings available. Basket ratings are based on a minimum D/d of 25.
- **Minimum sling length when using standard eyes.
- **Swaged ferrule material: Ø1-8mm: EN AW-6063. Ø > 8mm: seamless EN AW-5051A (standard) or EN AW-6063 (optional).
- **e: free tail length, 0.5 - 1.0x rope diameter, per EN 13411‑3.
6×19-IWRC/FC 1670MPa Standard Soft Eye Sling Chart
| Item No. | Rope Dia. | Min. Sling Length* |
Eye Size (mm) |
Swaged Ferrule | Rated Capacities (tons) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dia. | Length | Material* | Vertical | Choker | Basket | |||||||
| (mm) | L (mm) | W1 × L1 | D2 (mm) | L2 (mm) | IWRC | FC | IWRC | FC | IWRC | FC | ||
| KS619(S/F)25D-BEEA | 2.5 | 130 | 20 × 40 | 5 | 12 | AW-6063 | 0.25 | 0.25 | 0.35 | 0.35 | 0.65 | 0.65 |
| KS619(S/F)03-BEEA | 3 | 150 | 23 × 46 | 6 | 14 | AW-6063 | 0.4 | 0.55 | 0.85 | |||
| KS619(S/F)04-BEEA | 4 | 200 | 30 × 60 | 8 | 18 | AW-6063 | 0.5 | 0.65 | 0.95 | |||
| KS619(S/F)45D-BEEA | 4.5 | 220 | 34 × 68 | 9 | 20 | AW-6063 | ||||||
| KS619(S/F)05-BEEA | 5 | 250 | 38 × 76 | 10 | 23 | AW-6063 | 0.6 | 0.75 | 1 | |||
| KS619(S/F)06-BEEA | 6 | 300 | 45 × 90 | 12 | 27 | AW-6063 | ||||||
| KS619(S/F)65D-BEEA | 6.5 | 330 | 50 × 100 | 13 | 29 | AW-6063 | ||||||
| KS619(S/F)07-BEEA | 7 | 350 | 53 × 106 | 14 | 32 | AW-6063 | ||||||
| KS619(S/F)08-BEEA | 8 | 400 | 60 × 120 | 16 | 36 | AW-6063 | ||||||
| KS619(S/F)09-BEEA | 9 | 445 | 68 × 136 | 18 | 40 | AW-5051A | ||||||
| KS619(S/F)10-BEEA | 10 | 490 | 75 × 150 | 20 | 45 | AW-5051A | ||||||
- Note: Larger diameter slings available. Basket ratings are based on a minimum D/d of 25.
- **Minimum sling length when using standard eyes.
- **Swaged ferrule material: Ø1 - 8mm: EN AW-6063. Ø > 8mm: seamless EN AW-5051A (standard) or EN AW-6063 (optional).
- **e: free tail length, 0.5 - 1.0x rope diameter, per EN 13411‑3.
6×7-IWRC/FC 1670MPa Standard Soft Eye Sling Chart
| Item No. | Rope Dia. | Min. Sling Length* |
Eye Size (mm) |
Swaged Ferrule | Rated Capacities (tons) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dia. | Length | Material* | Vertical | Choker | Basket | |||||||
| (mm) | L (mm) | W1 × L1 | D2 (mm) | L2 (mm) | IWRC | FC | IWRC | FC | IWRC | FC | ||
| KS67(S/F)25D-BEEA | 2.5 | 130 | 20 × 40 | 5 | 12 | AW-6063 | 0.3 | 0.3 | 0.45 | 0.45 | 0.75 | 0.75 |
| KS67(S/F)03-BEEA | 3 | 150 | 23 × 46 | 6 | 14 | AW-6063 | 0.4 | 0.55 | 0.85 | |||
| KS67(S/F)04-BEEA | 4 | 200 | 30 × 60 | 8 | 18 | AW-6063 | 0.5 | 0.65 | 0.95 | |||
| KS67(S/F)45D-BEEA | 4.5 | 220 | 34 × 68 | 9 | 20 | AW-6063 | ||||||
| KS67(S/F)05-BEEA | 5 | 250 | 38 × 76 | 10 | 23 | AW-6063 | 0.6 | 0.75 | 1 | |||
| KS67(S/F)06-BEEA | 6 | 300 | 45 × 90 | 12 | 27 | AW-6063 | ||||||
| KS67(S/F)65D-BEEA | 6.5 | 330 | 50 × 100 | 13 | 29 | AW-6063 | ||||||
| KS67(S/F)07-BEEA | 7 | 350 | 53 × 106 | 14 | 32 | AW-6063 | ||||||
| KS67(S/F)08-BEEA | 8 | 400 | 60 × 120 | 16 | 36 | AW-6063 | ||||||
| KS67(S/F)09-BEEA | 9 | 445 | 68 × 136 | 18 | 40 | AW-5051A | ||||||
| KS67(S/F)10-BEEA | 10 | 490 | 75 × 150 | 20 | 45 | AW-5051A | ||||||
- Note: Larger diameter slings available. Basket ratings are based on a minimum D/d of 25.
- **Minimum sling length when using standard eyes.
- **Swaged ferrule material: Ø1 - 8mm: EN AW-6063. Ø > 8mm: seamless EN AW-5051A (standard) or EN AW-6063 (optional).
- **e: free tail length, 0.5 - 1.0x rope diameter, per EN 13411‑3.
Frequently Asked Questions
304 is suitable for dry or indoor environments and general-purpose uses; 316 contains molybdenum (Mo) and offers superior protection against harsh chemicals such as salt water, acid rain, and alkaline well water, making it the choice for marine, coastal, medical, and food applications.
