Single-leg Wire Rope Slings
/
Standard Soft Eye & Thimble Eye Wire Rope Sling with Alum Ferrule

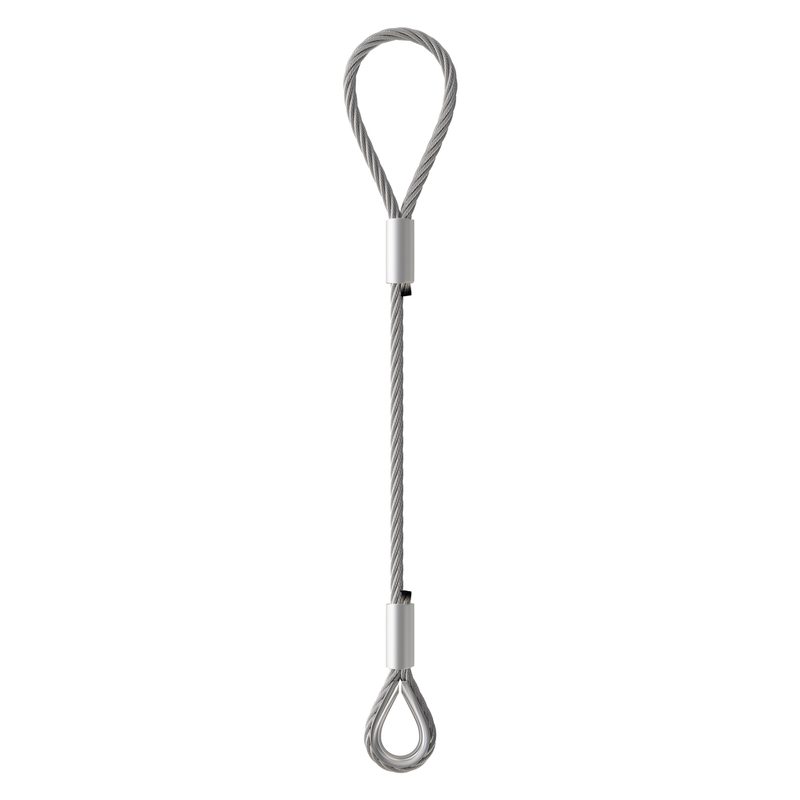

Please Note: The product image shown is 3D rendering, not actual product photo. This allows us to present unlimited customization options (color, material, finish). Request a sample or video of the physical item before placing a bulk order.
Standard Soft Eye & Thimble Eye Wire Rope Sling with Alum Ferrule
Standard Soft Eye & Thimble Eye Wire Rope Sling with Alum Ferrule
Categories:
Single-leg Wire Rope Slings
Standard Soft Eye & Thimble Eye Wire Rope Sling with Alum Ferrule
Specifications

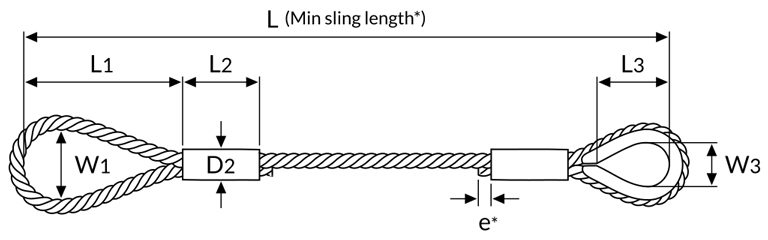

Standard Soft Eye & Thimble Eye Sling Chart
| Item No. | Rope Dia. | Min. Sling Length* |
Soft Eye | Thimble Eye | Swaged Ferrule | WLL (tons) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (mm) | Size (mm) | WLL (tons) |
Dia. | Length | Material* | 6×37 | 6×19 | 6×7 | ||||||
| (mm) | L (mm) | W1 × L1 | W3 × L3 | D2 (mm) | L2 (mm) | IWRC | FC | IWRC | FC | IWRC | FC | |||
| KR25D-BETA | 2.5 | 130 | 20 × 40 | 20 × 35 | 0.3 | 5 | 12 | AW-6063 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| KR03-BETA | 3 | 150 | 23 × 46 | 20 × 35 | 0.4 | 6 | 14 | AW-6063 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| KR04-BETA | 4 | 200 | 30 × 60 | 20 × 35 | 0.5 | 8 | 18 | AW-6063 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| KR45D-BETA | 4.5 | 220 | 34 × 68 | 20 × 35 | 0.6 | 9 | 20 | AW-6063 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| KR05-BETA | 5 | 250 | 38 × 76 | 20 × 35 | 0.7 | 10 | 23 | AW-6063 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
| KR06-BETA | 6 | 300 | 45 × 90 | 20 × 35 | 0.8 | 12 | 27 | AW-6063 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| KRD-BETA | 6.5 | 330 | 50 × 100 | 20 × 35 | 0.9 | 13 | 29 | AW-6063 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| KR07-BETA | 7 | 350 | 53 × 106 | 20 × 35 | 1.0 | 14 | 32 | AW-6063 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| KR08-BETA | 8 | 400 | 60 × 120 | 20 × 35 | 2.0 | 16 | 36 | AW-6063 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| KR09-BETA | 9 | 445 | 68 × 136 | 20 × 35 | 3.0 | 18 | 40 | AW-5051A | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
| KR10-BETA | 10 | 490 | 75 × 150 | 20 × 35 | 4.0 | 20 | 45 | AW-5051A | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 |
- Note: Larger diameter slings available. Rated Capacities based on design factor of 5.
- **Minimum sling length when using standard eyes.
- **Swaged ferrule material: Ø1 - 8mm: EN AW-6063. Ø > 8mm: seamless EN AW-5051A (standard) or EN AW-6063 (optional).
- **e: free tail length, 0.5 - 1.0x rope diameter, per EN 13411‑3.
Frequently Asked Questions
Q:
304 vs. 316 Stainless Steel Wire Rope: Corrosion Resistance & Applications?
304 is suitable for dry or indoor environments and general-purpose uses; 316 contains molybdenum (Mo) and offers superior protection against harsh chemicals such as salt water, acid rain, and alkaline well water, making it the choice for marine, coastal, medical, and food applications.
Q:
Stainless Steel vs. General Purpose Wire Rope: Which is Stronger?
For the same diameter and construction, a general purpose wire rope (typically 1670 MPa) has higher breaking strength than a 304 or 316 stainless steel wire rope, which typically ranges from 1370 to 1570 MPa.
